Raamklem met camera montage RAM-B-177-237
Montage set voor camera op b.v. autoraam.
Lees de volledige productomschrijving
Montage set met windshield klemhouder, flexibele arm en B-Kogel met 1/4" Engelse draad
Deze past ook in de statiefbevestiging van vrijwel elke camera.
Set bestaat uit

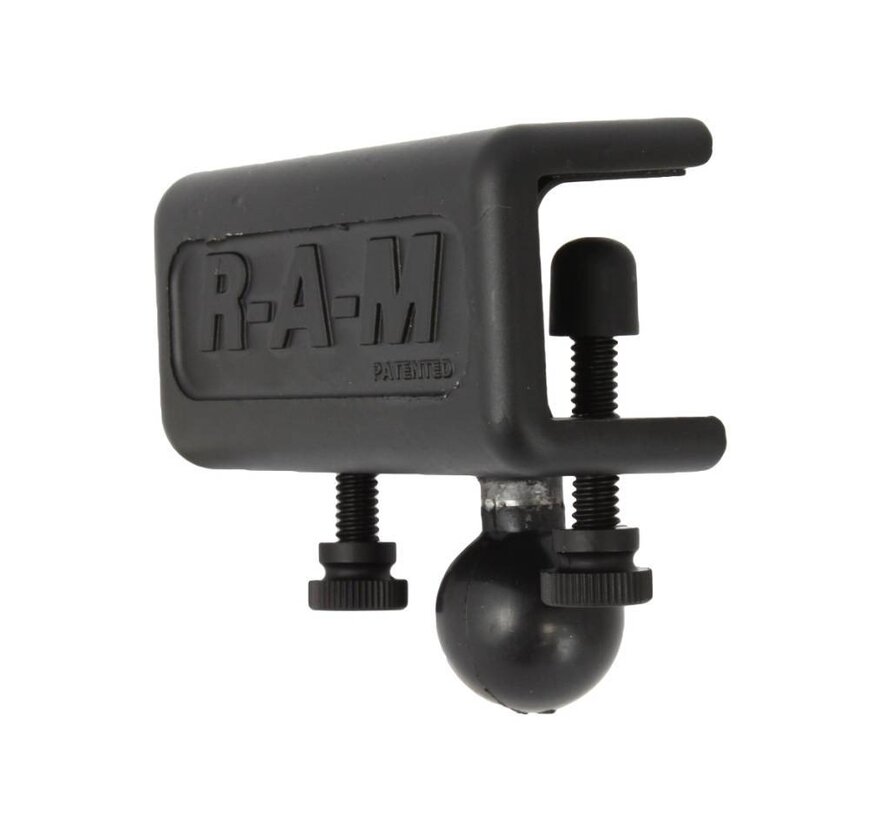

1x RAM-B-259U
Montage op open gedraaid (auto of vliegtuig)raampje. Aluminium onderdeel met rubber bescherming, met kunststof schroeven en B-Kogel.

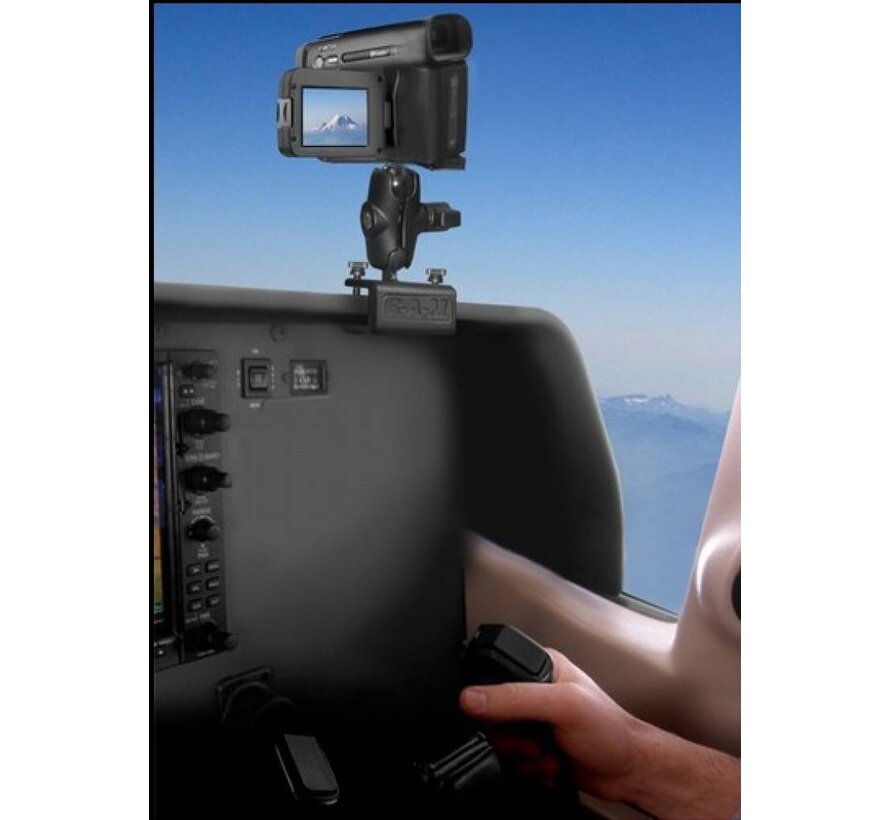

The RAM-B-259U is designed to mount to the lip edge of a flat surface up to 1" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diamter arm socket and connection plates to create the perfect mount for your application.
Mount will attach to flat surfaces with the following dimensions:
Min: 4.4mm / 0.17"
Max: 28.0mm / 1.12"
Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1" Rubber Ball "B" Size

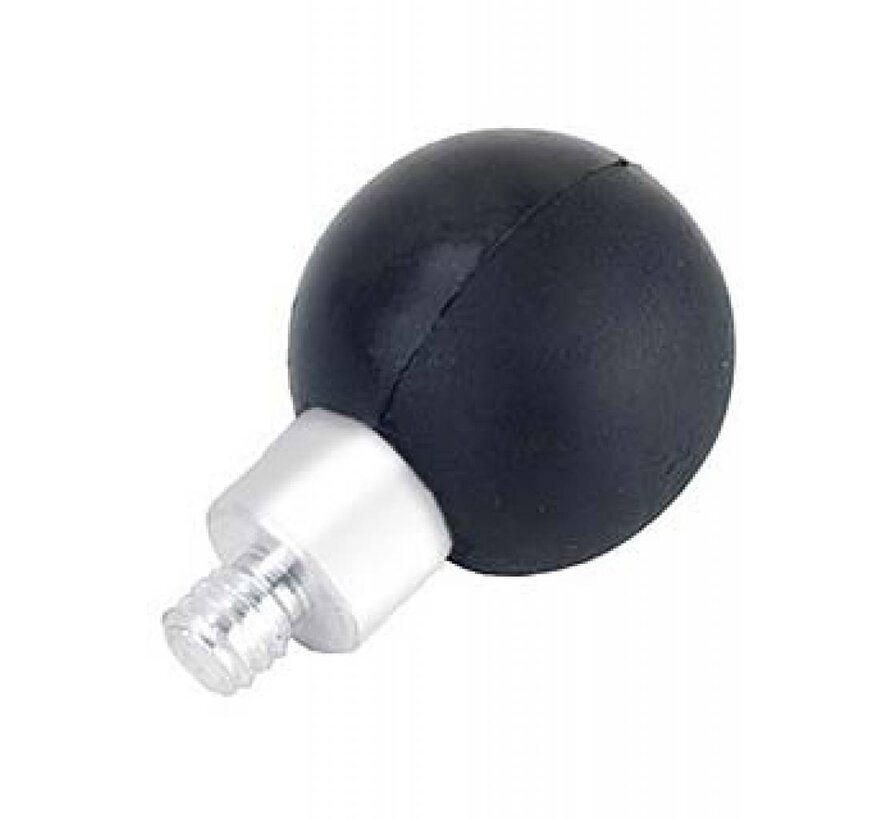

1x RAM-B-237U
The RAM-B-237U, universal camera and camcorder base, consists of a 1" diameter rubber ball, connected to a 1/4"-20 camera thread. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.
The patented rubber ball and socket design will help to protect the electronics by dampening shock and vibration. Mounting systems offer a 1/4"-20 male stud for easy attachment to all standard cameras.
Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1" Rubber Ball "B" Size
